电子外径千分尺
棘轮套测力，利便单手使用。
通电后，显示值即为绝对丈量的起始值。
硬质合金丈量面。
丈量参数
| 货号 | 丈量规模 | 精度 | 区分力 |
|---|
| 132-01-850 | 0-25mm | ±0.002mm | 0.001mm |
| 132-02-850 | 25-50mm | ±0.002mm | 0.001mm |
| 132-03-850 | 50-75mm | ±0.003mm | 0.001mm |
| 132-04-850 | 75-100mm | ±0.003mm | 0.001mm |
| 132-05-850 | 100-125mm | ±0.003mm | 0.001mm |
| 132-06-850 | 125-150mm | ±0.003mm | 0.001mm |
| 132-07-850 | 150-175mm | ±0.004mm | 0.001mm |
| 132-08-850 | 175-200mm | ±0.004mm | 0.001mm |
| 200mm-300mm为马蹄尺架 |
| 132-09-850 | 200-225mm | ±0.004mm | 0.001mm |
| 132-10-850 | 225-250mm | ±0.004mm | 0.001mm |
| 132-11-850 | 250-275mm | ±0.005mm | 0.001mm |
| 132-12-850 | 275-300mm | ±0.005mm | 0.001mm |

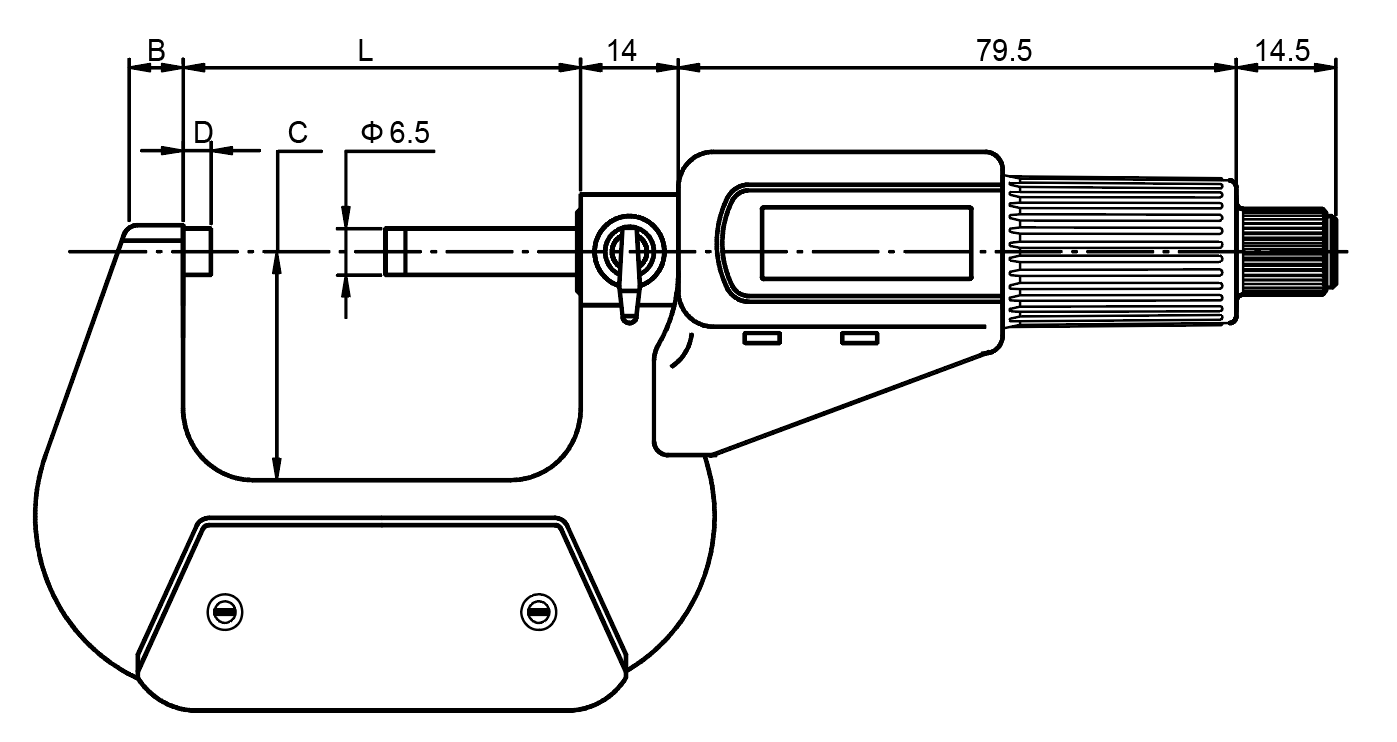

尺寸图
主要尺寸
| 丈量规模 | C | L | B | D |
|---|
| 0-25mm | 24mm | 32mm | 6mm | 3.0mm |
| 25-50mm | 32mm | 57mm | 8mm | 3.0mm |
| 50-75mm | 45mm | 82mm | 8mm | 3.0mm |
| 75-100mm | 57mm | 107mm | 10mm | 3.0mm |
| 100-125mm | 70mm | 133mm | 10mm | 3.0mm |
| 125-150mm | 82mm | 158mm | 10mm | 3.0mm |
| 150-175mm | 95mm | 183mm | 12mm | 5.5mm |
| 175-200mm | 107mm | 209mm | 12mm | 5.5mm |
| 200mm-300mm为马蹄尺架 |
| 200-225mm | 129.5mm | 234.2mm | 19.5mm | 6mm |
| 225-250mm | 142mm | 259.6mm | 19.5mm | 6mm |
| 250-275mm | 155.0mm | 285mm | 19.5mm | 6mm |
| 275-300mm | 167.5mm | 310.4mm | 19.5mm | 6mm |
功效
| 开/要害，自动断电 | √ |
| 绝对/相对丈量模式转换 | √ |
| 公制/英制丈量模式转换 | √ |
| 初始值设置 | √ |
| 一粒CR2032电池 | √ |
